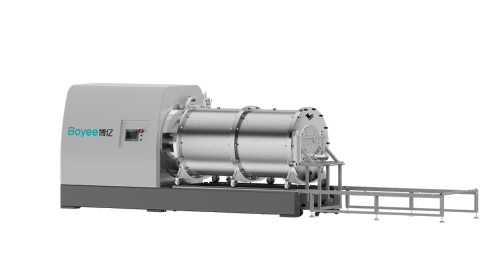

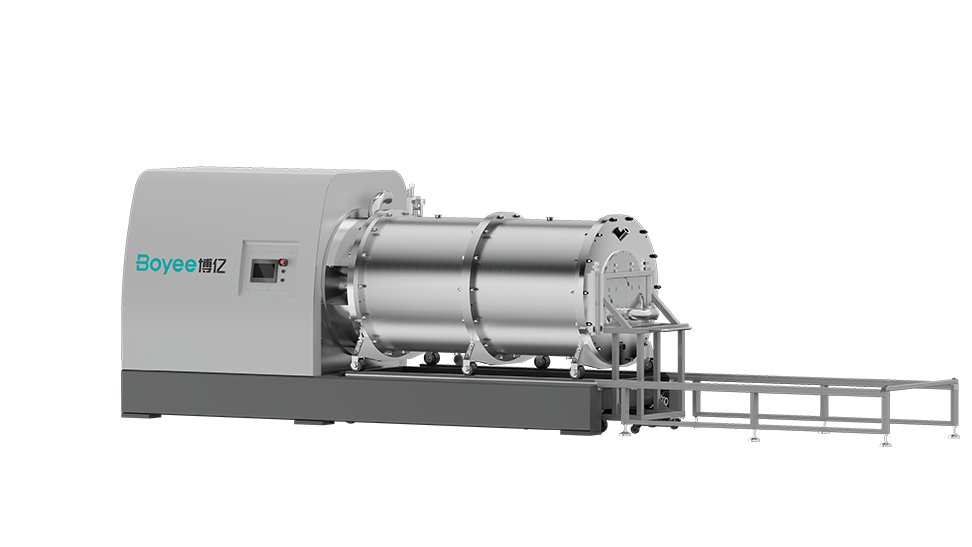

I. NMM Direct-Drive Nano Bead Mill
1.
Engineered for large-scale lithium iron phosphate manufacturing, the NMM Direct-Drive Nano Bead Mill serves as the core grinding equipment in Boyee's High-Density Lithium Iron Phosphate Production Line Solution.
2.
Its permanent magnet direct-drive system, wedge-shaped screen separation, and fully ceramic wear-resistant chamber are purpose-built to meet the continuous, high-flow, nano-scale dispersion demands of 10,000-ton-scale LFP production, ensuring stable particle size distribution and consistent tap density throughout the entire production line.
01
Permanent magnet direct-drive system delivers high efficiency and energy savings with lower transmission loss.
02
Wedge-shaped screen design prevents clogging and ensures smoother high-flow separation.
03
Fully ceramic wear-resistant chamber provides stronger corrosion resistance and longer service life.
04
High-energy pin rotor enables highly efficient nanoscale grinding.
05
Double-end mechanical seal ensures zero leakage throughout the entire process for enhanced safety.
06
Specifically designed for 10,000-ton-scale lithium iron phosphate production.
Same series of products
NMM-1000L
NMM-2000L
NMM-2000L
NMM-3000L
NMM-1000L
Equipment characteristics:
Permanent Magnet Direct-Drive Motors. Energy-Savingand Cost-Effective

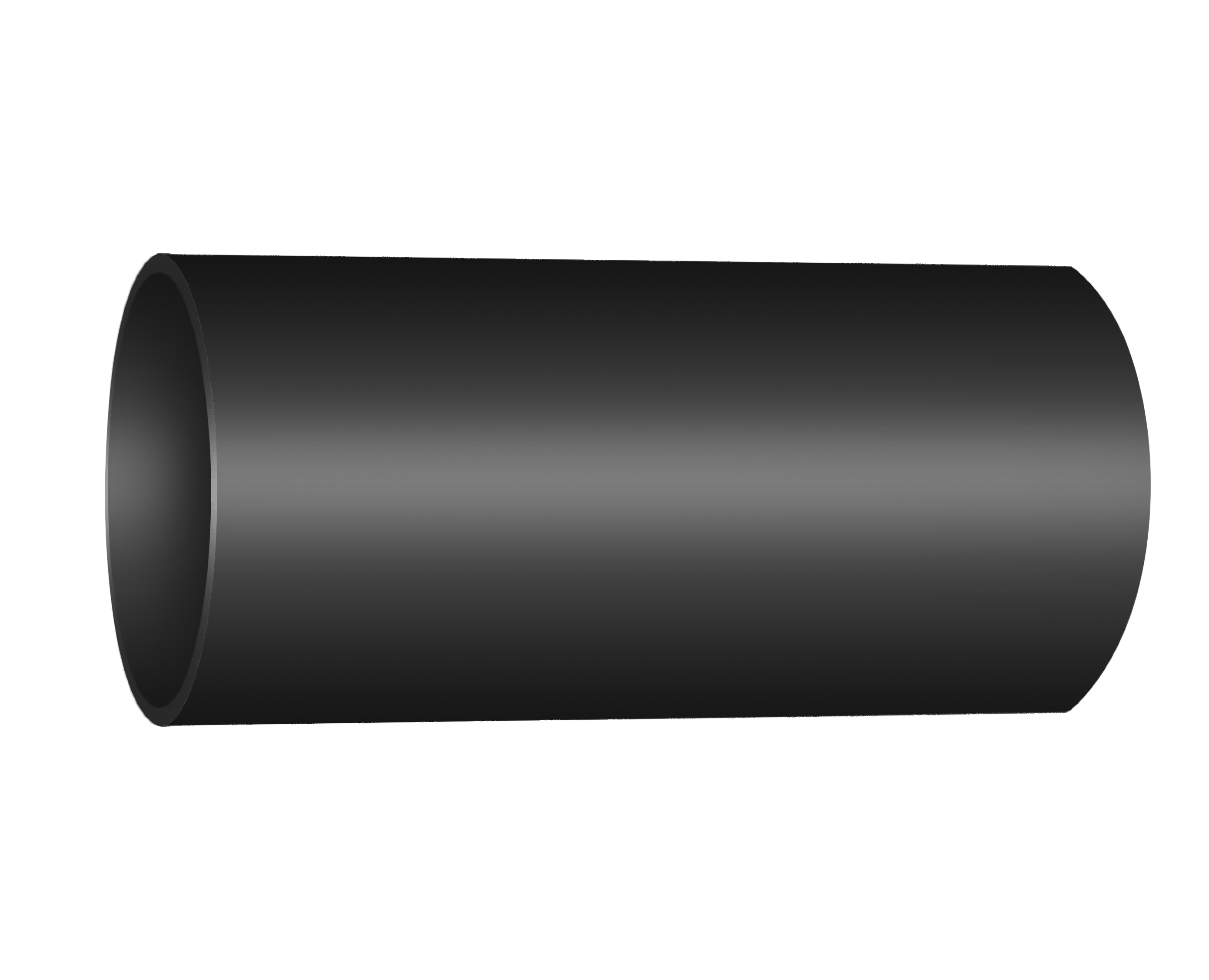

Wear- and Corrosion-Resistant Silicon Carbide Liners
The Pin-Type Rotor Features High Energy Density Significantly Boosting Crushing Efficiency
The Wedge-Wire Filter Screen Prevents Bead Trapping, Ensuring Seamless Separation
Double-Ended Mechanical Sea! for Leak-Free Operation
1000
Effective Chamber
Volume（L）
650
Motor（KW）
290
Spindle Speed（r/min）
0.1-2.0
Grinding Media Size（mm）
2520-2880
Zirconia Bead Capacity（KG）
5000X2000X2300
Dimensions（mm)
NMM-2000L
Equipment characteristics:
Permanent Magnet Direct-Drive Motors. Energy-Savingand Cost-Effective
Wear- and Corrosion-Resistant Silicon Carbide Liners
The Pin-Type Rotor Features High Energy Density Significantly Boosting Crushing Efficiency
The Wedge-Wire Filter Screen Prevents Bead Trapping, Ensuring Seamless Separation
Double-Ended Mechanical Sea! for Leak-Free Operation
Make a variety of materials meet personalized needs
Easy to operate and clean
2000
Effective Chamber
Volume（L）
950
Motor（KW）
0-270
Spindle
speed(r/min)
0.3-1.0
Diameter of grinding
medium(mm)
3780-4320
Zirconia
Bead Capacity（KG）
5300x2200x2400
Dimensions（mm)
NMM-1500L
Equipment characteristics:
Permanent Magnet Direct-Drive Motors. Energy-Savingand Cost-Effective
Wear- and Corrosion-Resistant Silicon Carbide Liners
The Pin-Type Rotor Features High Energy Density Significantly Boosting Crushing Efficiency
The Wedge-Wire Filter Screen Prevents Bead Trapping, Ensuring Seamless Separation
Double-Ended Mechanical Sea! for Leak-Free Operation
Make a variety of materials meet personalized needs
Easy to operate and clean
2000
Effective Chamber
Volume（L）
1300
Motor（KW）
0-270
Spindle
speed(r/min)
0.3-1.0
Diameter of grinding
medium(mm)
5040-5760
Zirconia
Bead Capacity（KG）
5600x2200x2400
Dimensions（mm)
NMM-3000L
Equipment characteristics:
Permanent Magnet Direct-Drive Motors. Energy-Savingand Cost-Effective
Wear- and Corrosion-Resistant Silicon Carbide Liners
The Pin-Type Rotor Features High Energy Density Significantly Boosting Crushing Efficiency
The Wedge-Wire Filter Screen Prevents Bead Trapping, Ensuring Seamless Separation
Double-Ended Mechanical Sea! for Leak-Free Operation
Excellent cooling performance
Make a variety of materials meet personalized needs
Easy to operate and clean
3000
Effective Chamber
Volume（L）
2500
Motor（KW）
0-270
Spindle
speed(r/min)
0.3-1.0
Diameter of grinding
medium(mm)
7560-8640
Zirconia
Bead Capacity（KG）
6800x2200x2400
Dimensions（mm)
The grinding system can choose turbine and rod pin according to the requirements:

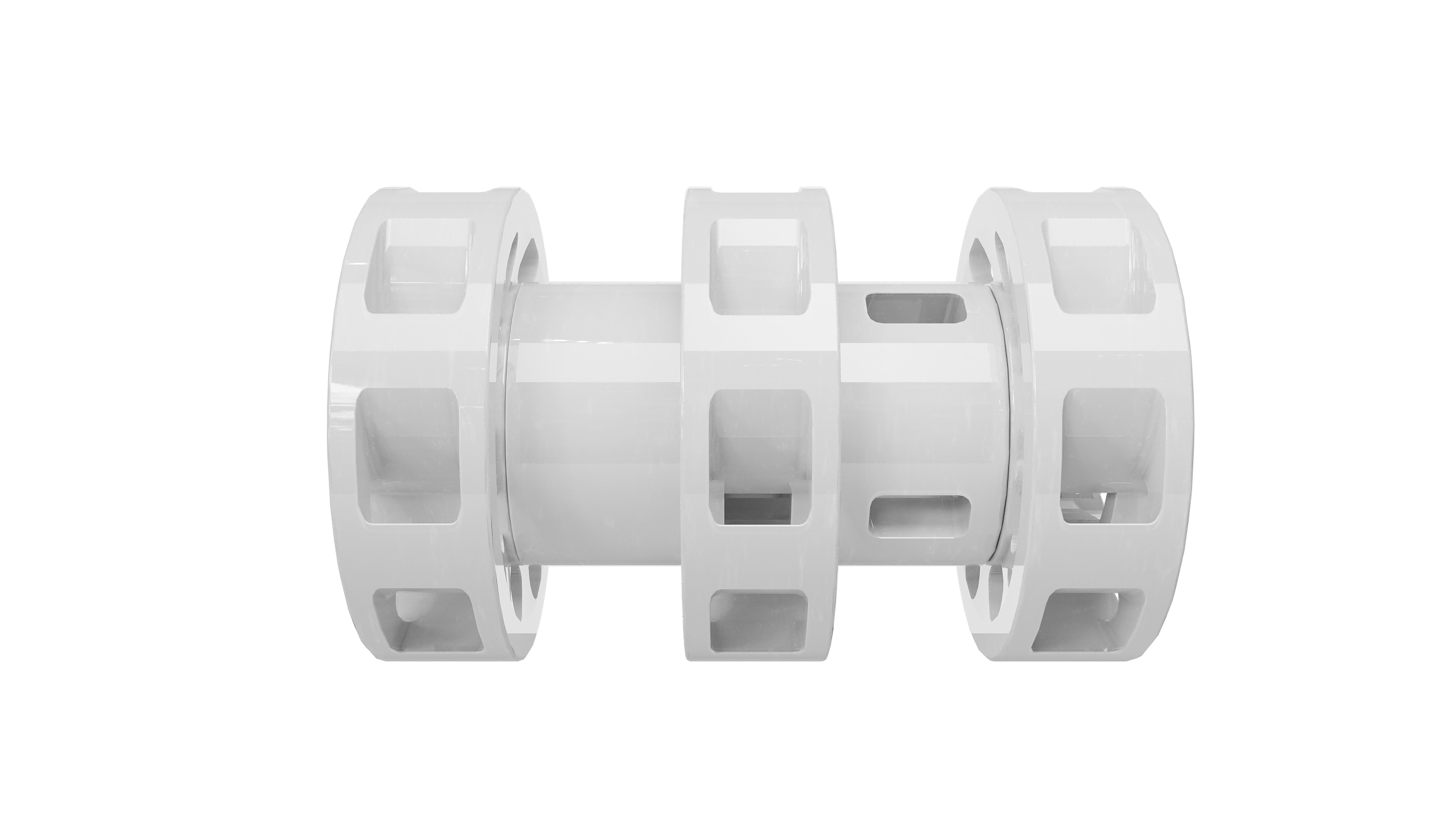

Turbine rotor
Providing more gentle and meticulous grinding effect can effectively prevent excessive material dispersion and improve TurboMax patented Turbine(Turbo) structure grinding quality and accuracy
Rod pin rotor
The rod-pin rotor structure has high linear velocity, which can form continuous strong grinding in the grinding（Chamber), and the impact and grinding effect on the material is more intense

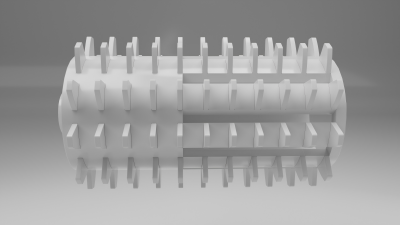

Zirconia

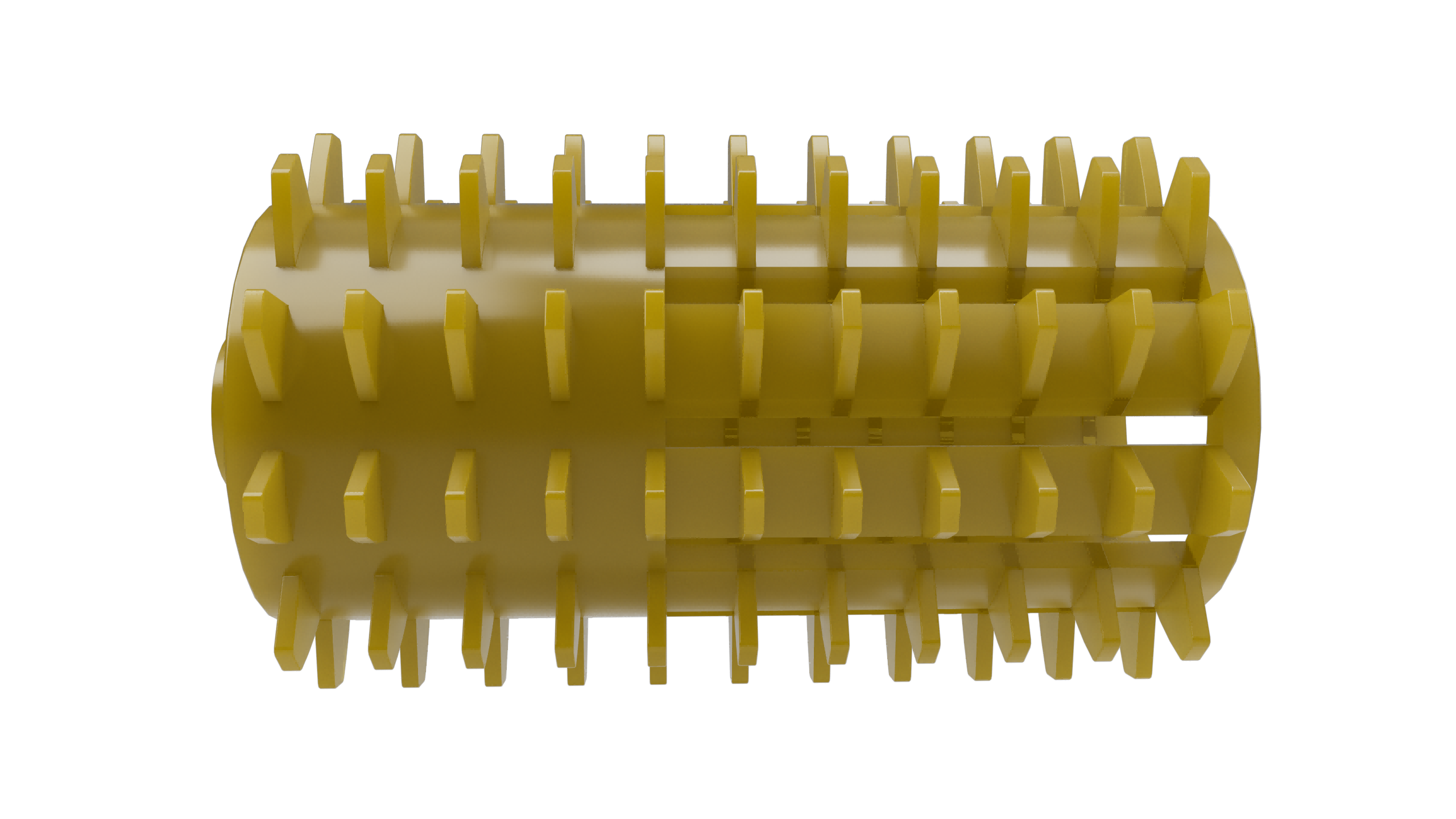

Polyurethane (PU)
